Product Details ⇣

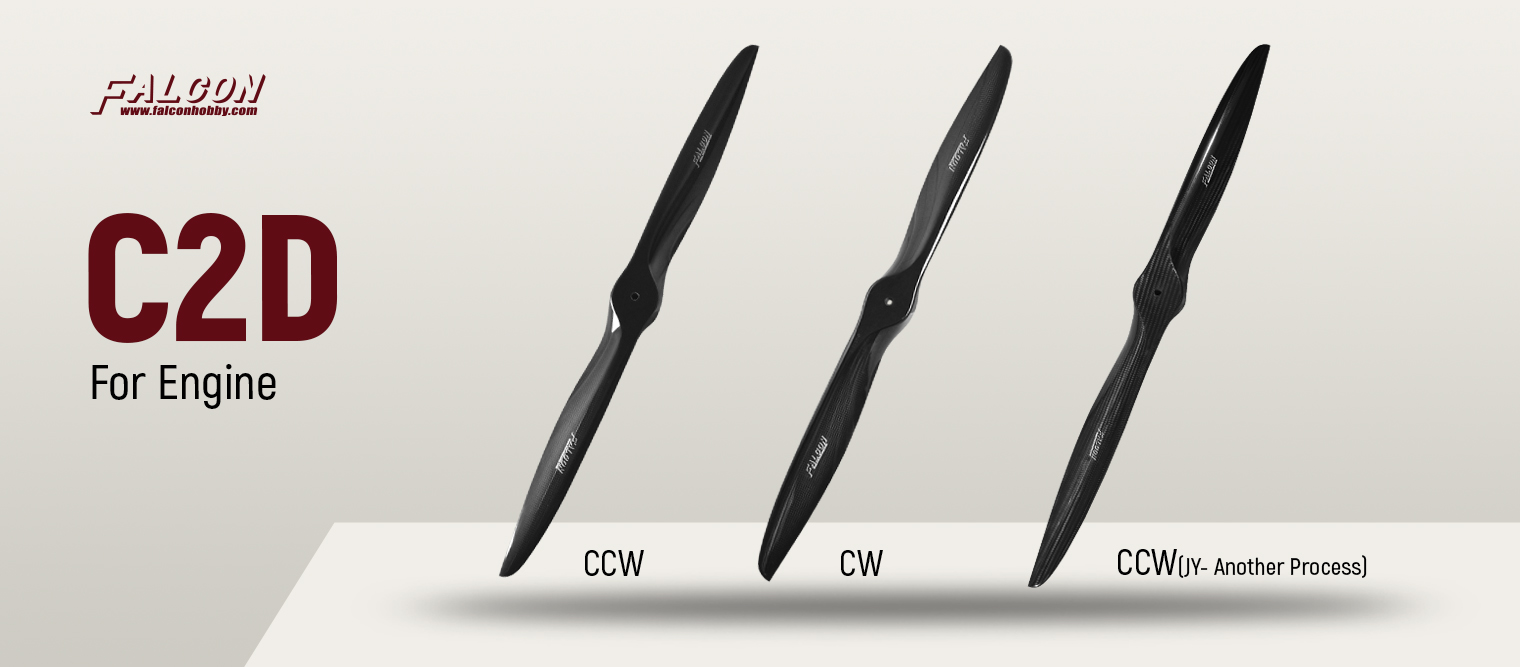

C2D-Carbon Fiber Propeller
We has done a balance treatment for each propeller before leaving the factory, which has achieved the best low vibration and high safety.
▌Features
● High efficiency
● Fast response
● With extremely high flight strength
▌Technical Data
20x13 (15℃, 1013.25hPa)
| RPM | T(kgf) | W | gf/W |
| 3053 | 2.39 | 247.71 | 9.67 |
| 4470 | 5.22 | 757.20 | 6.90 |
| 5480 | 7.80 | 1403.07 | 5.56 |
| 6218 | 10.03 | 2065.68 | 4.85 |
| 6842 | 12.17 | 2781.61 | 4.38 |
| 7385 | 14.26 | 3560.13 | 4.01 |
| 7972 | 15.62 | 4754.86 | 3.28 |
| 8589 | 17.74 | 6105.18 | 2.91 |
| 8922 | 18.82 | 6883.85 | 2.73 |
▌Parameters
| Diameter(Inch) | Pitch(Inch) |
|---|---|
| Note: All rotation directions are viewed from the front of the aircraft. CW is highlighted in yellow in the parameters, while CCW has no letter marking. “W” indicates a wide blade. | |
| 16 | 8, 9, 10 |
| 17 | 6, 6.5, 7, 8, 10 |
| 18 | 6, 6W, 6.5, 7, 8, 9, 10, 10(CW), 11 |
| 18.5 | 6W |
| 19 | 8, 10, 10(CW） |
| 20 | 6, 7, 8, 9, 9(CW), 10, 11, 12, 13, 15 |
| 21 | 8, 10, 12.5 |
| 22 | 8, 8W, 9, 10, 11, 12, 14, 14(CW) |
| 23 | 8, 8W, 9, 10, 10(CW JY), 11, 12 |
| 24 | 8, 9, 10, 11, 12, 12(CW) |
| 25 | 8W, 9, 10, 11, 12, 12(CW), 13 |
| 26 | 8, 8W, 9, 10, 11, 12, 13 |
| 27 | 9W, 10, 11, 12, 13 |
| 28 | 8W, 9, 9W, 9.5, 10, 11, 12, 12N, 13, 14, 14N |
| 29 | 9, 9W, 9W(CW), 10, 11, 12, 13, 14 |
| 30 | 9W, 10, 10W, 11, 12, 13, 13W, 13(CW), 14, 15 |
| 31 | 10W, 10W(CW), 11, 12, 13, 14, 16, 16(CW) |
| 32 | 10, 10W, 11, 11W, 12, 13, 14 |
| 32.5 | 12 |
| 33 | 11(CW), 11W, 12, 13, 14, 16 |
| 34 | 12, 13, 14, 16 |
| 36 | 13, 14, 16 |
| 37 | 13 |
| 38 | 14, 16, 18 |
| 42 | 20 |
