Product Details ⇣

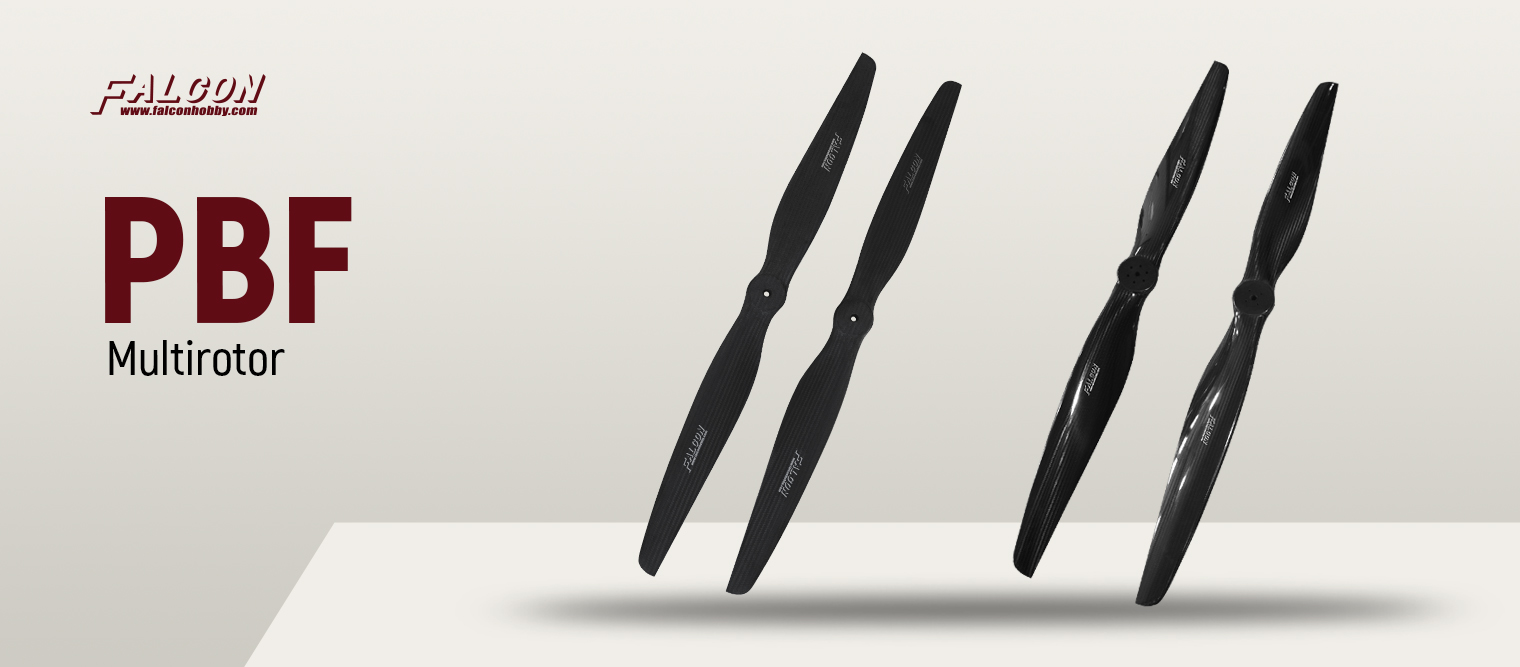

PBF - Multirotor
For motor
▌Features
● Heavy payload
● Save space with same thrust
● Less air drag during cruise
▌Technical Data
42x16.5 (15℃, 1013.25hPa)
| RPM | T(kgf) | W | gf/W |
| 1399 | 6.98 | 542.95 | 12.85 |
| 2152 | 17.27 | 2000.19 | 8.64 |
| 2827 | 31.17 | 4692.31 | 6.64 |
| 3318 | 43.32 | 7716.38 | 5.61 |
| 3489 | 48.02 | 9030.93 | 5.32 |
| 3650 | 53.71 | 10566.09 | 5.08 |
| 3748 | 56.60 | 11538.04 | 4.91 |
| 3844 | 59.40 | 12469.92 | 4.76 |
| 3927 | 62.54 | 13406.05 | 4.67 |
| 4012 | 65.99 | 14493.10 | 4.56 |
▌Parameters
| Diameter(Inch) | Pitch(Inch) |
| Note: "W" (wide blade) | |
| 16.1 | 6.4 |
| 17.1 | 6.8 |
| 18.1 | 7.2 |
| 19.1 | 7.6 |
| 20.1 | 8 |
| 22.1 | 7.4, 8.8 |
| 24.1 | 9.6 |
| 26.1 | 8.7, 10.4 |
| 27.1 | 10.8 |
| 28.1 | 9.2, 11.2 |
| 29.1 | 11.6 |
| 30.1 | 12, 13.2 |
| 32.1 | 12.8 |
| 32.5 | 14W |
| 34.1 | 11.4, 13.6, 15.2, 16.7 |
| 36.1 | 14.4, 15.8 |
| 38.1 | 13.5, 15.2 |
| 40.1 | 16, 17.5 |
| 42 | 15, 16.5 |
| 42.1 | 14.6 |
| 45 | 17.5, 18.9 |
| 48 | 21.8 |
| 48.1 | 20.2 |
