Product Details ⇣

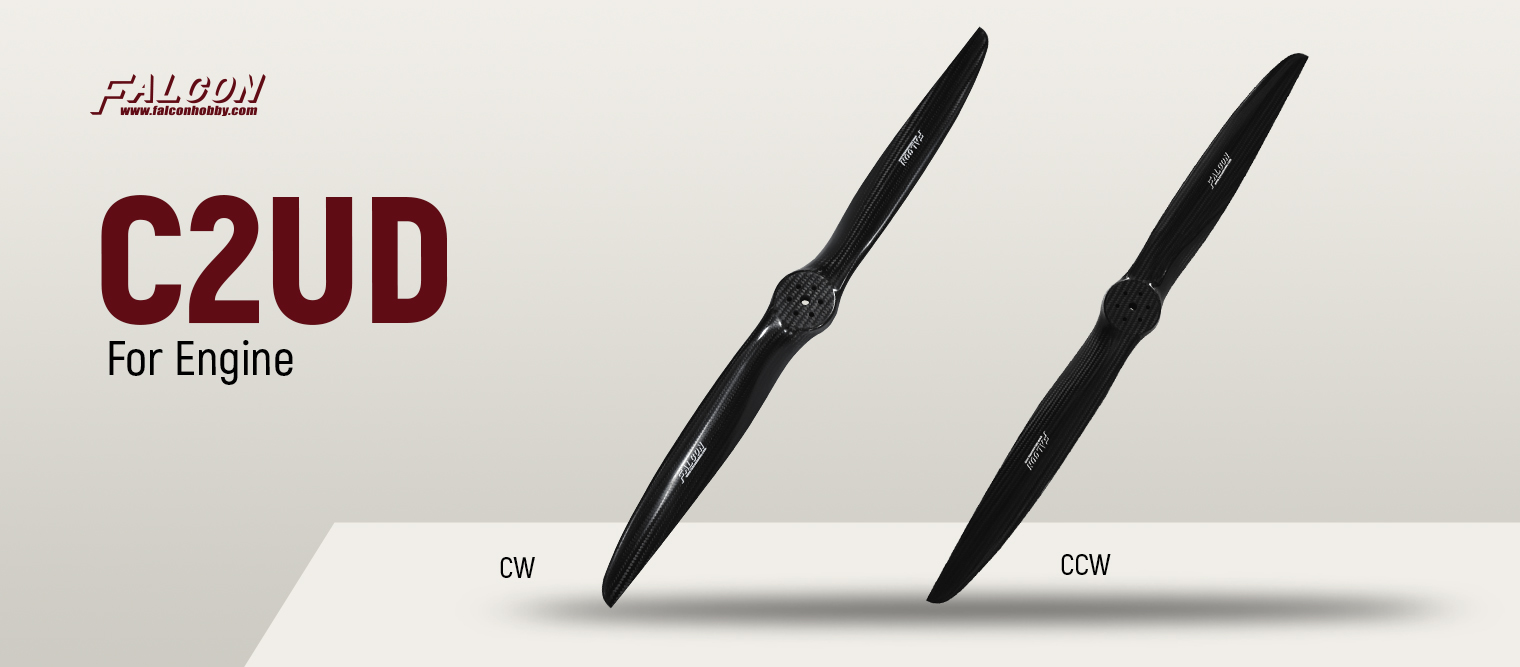

C2UD - Carbon Fiber Propeller
It's for VTOL and fixed wing. And it's suitable for diverse environments and climates.
▌Features
● Pusher and tractor, CW and CCW
▌Technical Data
28x17L (15℃, 1013.25hPa)
| RPM | T(kgf) | W | gf/W |
| 2189 | 4.20 | 427.19 | 9.82 |
| 3367 | 9.98 | 1522.26 | 6.55 |
| 4211 | 15.84 | 3018.49 | 5.25 |
| 4876 | 21.35 | 4770.21 | 4.48 |
| 5416 | 26.92 | 6733.90 | 4.00 |
| 5917 | 32.84 | 9138.28 | 3.59 |
| 6569 | 40.93 | 13293.10 | 3.08 |
| 6715 | 42.51 | 14370.36 | 2.96 |
▌Parameters
| Diameter(Inch) | Pitch(Inch) |
| Note: All rotation directions are viewed from the front of the aircraft. "L" indicates clockwise (CW) rotation, "R" indicates counterclockwise (CCW) rotation, "W" indicates a wide blade, and "N" indicates a narrow blade. | |
| 18 | 8NL, 9NL, 10R, 12R |
| 21 | 18L |
| 22 | 16L |
| 24 | 12L, 18L |
| 25 | 10L, 16L |
| 26 | 13L, 16L |
| 27 | 28L |
| 28 | 17L, 17R, 25L, 27L |
| 29 | 21L, 14R |
| 30 | 14R, 20R, 21L, 23L, 26L, 26R |
| 31 | 11R |
| 32 | 10R, 14R |
| 33 | 20L, 20R |
| 34 | 14R, 22L, 24R |
| 35 | 21L, 21R, 22L |
| 36 | 20L, 21R, 22WL, 22WR |
| 37 | 22L, 22R |
