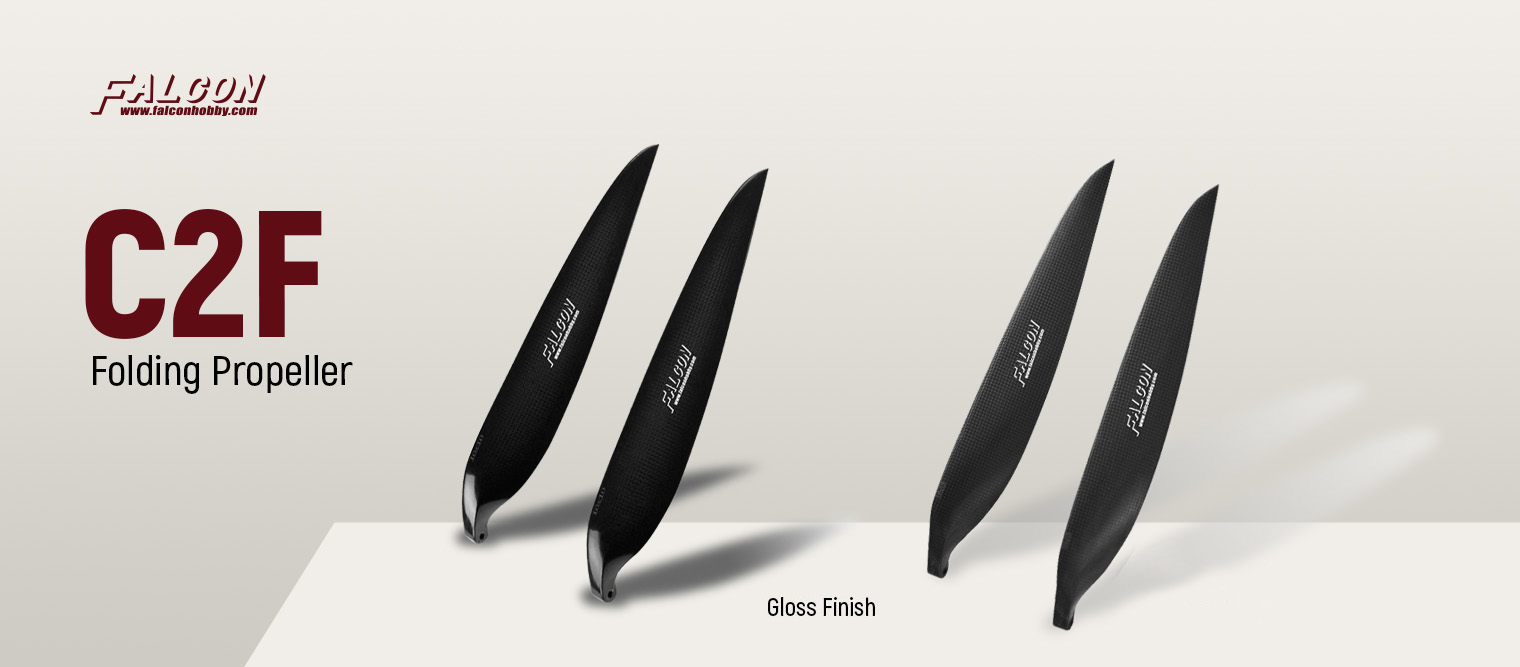

C2F - Folding Propeller
For Fixed wing & RC.
▌Features

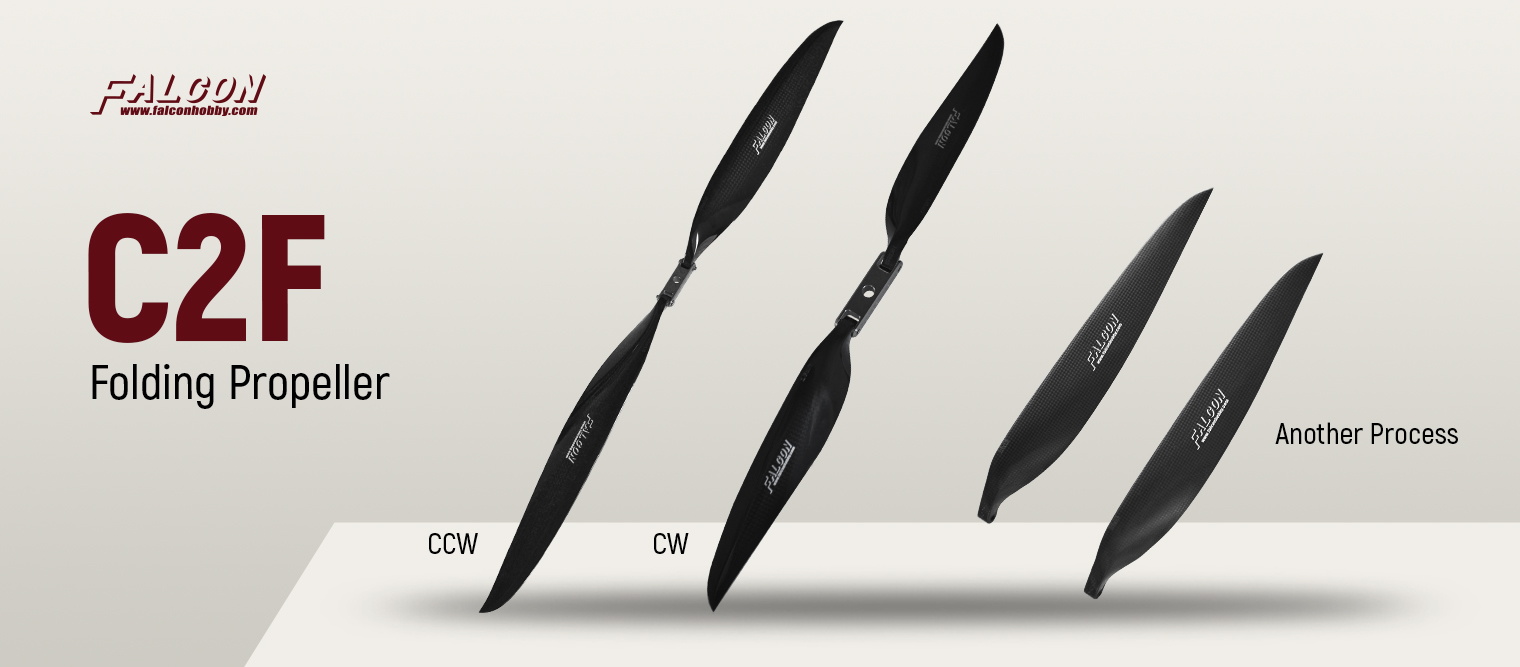

● CW and CCW
▌Multiple colors
▌Technical Data
20x14 (11.9℃, 1017.7hPa, 30.08%Rh)
| RPM | T(kgf) | W | gf/W |
| 946 | 0.16 | 3.96 | 40.28 |
| 1886 | 0.60 | 41.87 | 14.37 |
| 2777 | 1.25 | 140.46 | 8.89 |
| 3635 | 2.20 | 319.38 | 6.89 |
| 4534 | 3.44 | 653.34 | 5.26 |
| 5218 | 4.65 | 1018.03 | 4.57 |
| 6010 | 6.19 | 1624.44 | 3.81 |
| 6540 | 7.30 | 2147.81 | 3.40 |
▌Parameters
| Diameter(Inch) | Pitch(Inch) |
| Note: All rotation directions are viewed from the front of the aircraft. CW is highlighted in yellow in the parameters, while CCW has no letter marking. | |
| 9 | 6 |
| 9.5 | 5 |
| 10 | 6 |
| 11 | 6, 8 |
| 11.5 | 7 |
| 12 | 6, 8, 8(CW), 10, 10(CW) |
| 13 | 6, 7, 7(CW), 9, 12 |
| 14 | 7, 8, 9, 9.5, 10, 10 JY |
| 15 | 8, 8(CW), 10, 12, 12 JY |
| 16 | 8, 8(CW), 10, 13, 13 JY, 14, 14 JY, 16 JY, 16(CW) JY |
| 17 | 8, 8 JY, 10, 10(CW), 10 JY, 12, 13, 13 JY, 14, 14 JY |
| 18 | 8, 8(CW), 9, 10, 10 JY, 12, 13, 13 JY, 14, 14 JY, 21 JY |
| 19 | 8, 10, 12, 12(CW), 12 JY, 13, 14 |
| 20 | 8, 8(CW), 10, 10(CW), 12, 13, 13(CW), 14 |
| 21 | 10, 12, 13, 14 |
| 22 | 10, 12, 12 JY, 13, 13 JY, 14 |
| 23 | 12, 12(CW), 13 |
| 24 | 10, 10(CW), 12 JY |
| 26 | 12, 12 JY |
| 30 | 12-3Blades |
